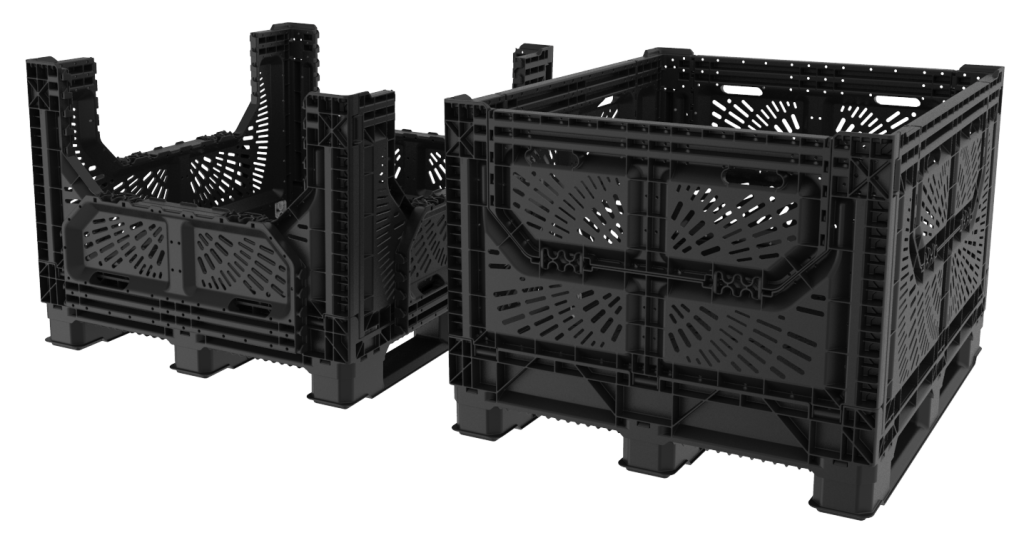

40 x 48 Field Bin
Especificaciones del producto
Detalles del producto
| Specifications | IN/LB | MM/KG |
|---|---|---|
| Length (L) | 48 | 1219.2 |
| Width (W) | 40 | 1016 |
| Height (H) | 32 | 812.8 |
| Overall Fork Pocket Width (W1) | 29.7 | 754 |
| Individual Fork Pocket Width (W2) | 12.3 | 313.2 |
| Overall Fork Pocket Length (L1) | 32 | 812.8 |
| Individual Fork Pocket Length (L2) | 13 | 330.2 |
| Fork Pocket Height (H1) | 3.42 | 86.9 |
| Folded Height (H2) | 10 | 254 |
| Nest Increment | 9.5 | 241.3 |
| Weight | 78 | 35.4 |
| Load Capacity | 1200 | 544 |
| Static Load Rating | 4800 | 2177 |
| Dynamic Load Rating | 2400 | 1089 |
| 53' Trailer Quantity | 330 |
- High impact copolymer PP resin provides a durable finish that won't absorb moisture, harmful bacteria or pathogens
- Dual-FlexTM hinges allow most net efficient bin available – 330 RPBs per truckload
- Light weight – more produce per shipment
- Drop doors on all four sides for one-touch merchandising in stores
- Assembles and folds down in seconds
- Smooth, contoured interior
- Computer optimized vent pattern for efficient forced-air cooling
- Ventilated bottom aids hydro-cooling
- Comfortable handles for easy assembly and knock-down
- Smooth, well vented interior makes cleanup quick and easy
- Integrated latches
- Stack 'n LockTM alignment aids secure bin stacking
- Non-sequential folding and assembly, allows for ease of use
- Sturdy interlock prevents drop door walls from opening when stacked
Options
- Colors: Choice of standard or optional non-heavy metal (NHM) or FDA approved colors
- RFID compatible, works with VisionTM Software solution
Alternative Material for Sustainability
- PCR – RPC Circular Plastic Economy, Automotive Bumpers, Cart Seats
- PIR – RPC Mfg Scrap
- Up to 30% Black
- Up to 10% Color
